Specs
Overall Length w/std. extended swim platform : 28'0" (8.53 m)
Beam : 8'6" (2.59 m)
Draft - Stern Drive Down : 39" (99.1 cm)
Draft - Stern Drive Up : 22" (55.9 cm)
Dry Weight : 7,500 lbs (3,402 kg)
Fuel Capacity : 84 gal (317.9 L)
Water Capacity : 28 gal (106 L)
Holding Tank : 28 gal (106 L)
Dead Rise : 21°
Propulsion - MerCruiser 350 MAG MPI
Boattest.com
report:
"Big-time performance in a small-block V-8. That's what you get with the 350 MAG MPI. You'll enjoy outstanding top-end throttle response, easy starts and excellent day-to-day operation, compliments of the MEFI 3 Electronic Control Module with multiport fuel injection."
Engine Details:
350 Magnum® MPI Bravo® II MCM Stern Drive (300 hp - 224 kW)
Max RPM@WOT: 4800-5200
Dry Weight: 946 lbs.
Length/Width/Height(in): 32 x 30 x 22
Displacement (liters/cu.in): 5.7L /350 CID
Cylinders/Configuration: V8
Bore & Stroke: 4.00
Alternator Output Rating: 65 amp
Fuel Type: Gasoline
Fuel System: Multi-Point Electronic Fuel Injection
Exhaust System: Iron Manifold w/ Ceramic Coated Dry-Joint Exhaust
Ignition System: Crank-fired High Voltage Switch w/Knock Control
Cooling System: Thermostatically Controlled, Raw Water
Cabin Features
Carbon Monoxide Monitor
Carpet: Deep-Pile BCF - 44-Ounce
Lighting, 12V
Outlets, 120V GFI Protected

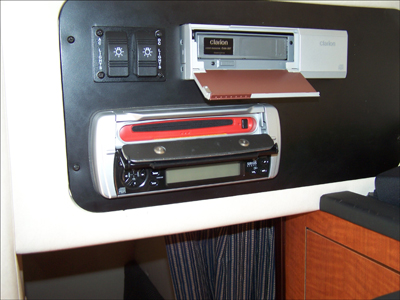

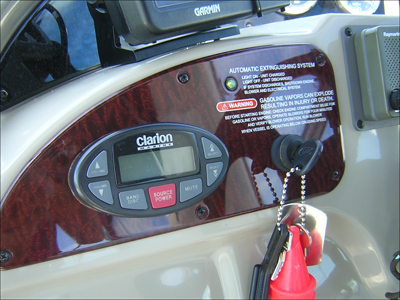

12V SIRIUS Satellite-Ready Stereo AM/FM Radio with Clarion Multi-CD Disk
changer and Quad Speaker layout (2 Coax - Cabin & 2 Component-Cockpit)
with Digital Cockpit Remote Control
Wood Interior Package: Cherry Wood Formica® Cabinets
Canvas (Sunbrella)
Aft Curtain: w/Bungee Straps
Bimini Top: w/Boot & Vertical Storage
Canvas Storage Bag
Front Curtains
Side Curtains
Certifications
Meets Applicable Standards: USCG & ABYC
NMMA Certification
Cockpit Features
Beverage Holders (12)
Cooler: Carry-On w/Designated Storage
Door, Cabin Entry: (Sliding & Lockable) - Fiberglass w/Integral Steps
Door, Transom: Acrylic
Floor Liner, Fiberglass: Self-Bailing
Hatch, Engine Room: Electrically Actuated
Lighting, Indirect
Outlet, 120V GFI Protected
Outlet, 12V Accessory
Seating, Aft Bench: w/Fiberglass Storage Base and Sun Pad Filler Cushion
Seating, Aft-Facing: w/Fiberglass Storage Base
Seating, Bucket: w/Swivel, Slider, Flip-Up Thigh-Rise Bolster, & Rotocast Shell - Helm
Seating, Curved Lounger: (Port)
Steps: Boarding - Molded-In
Wet Bar: w/Corian® Countertop, Sink, Stainless Steel Faucet, Beverage Holders, Stainless Steel Handrail, & Storage Below
Control Station
Ritchie Compass
Horn
Instrument Panels: High-Gloss Black Coral & Burl
Shift & Throttle Lever: w/Trim Switch & Ignition Cutout Switch
SmartCraft™ Diagnostics:
- Instrumentation, Custom Sea Ray® SmartCraft w/Low-Glare Blue Night Lighting & Chrome Bezels
- Four-In-One Gauge: (Includes: Fuel Level, Oil Pressure, Trim, Water Temperature)
- Speedometer
- System Tachometer (Includes: Depth/Water Temp, Engine Alarms/Hourmeter, Fuel Consumption/Usage, Trim Level, Troll Control, Voltage, Digital Speed)
Steering Wheel: w/Black Spokes & Polished Centerpiece
Steering, Power-Assisted
Steering, Tilt Wheel

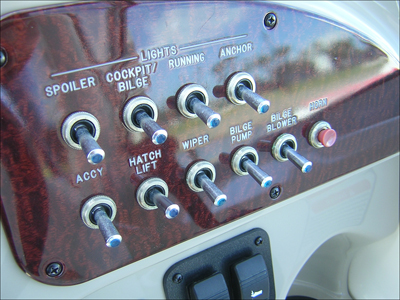

Switch Panel: w/Weatherproof Lighted Chrome Toggle Switches
Electrical Systems
Battery Charger/Converter: 120V/60 Cycle
Battery Switch, Dual
Battery Trays: w/Mounts
Fuse Block
Isolator, Galvanic
Panel, DC Main Breaker
Panel, Main Distribution - AC / DC
Shore Power: 30 Amp/120V/60 Cycle w/50' Cord & Adapter
Wiring, Color-Coded: w/Chafe Protection
Electronics
Depth Finder: Techsonic (Diesel Only)
VHF Radio (Raymarine 215): w/8' Fiberglass Antenna & Stainless Steel Ratchet Mount

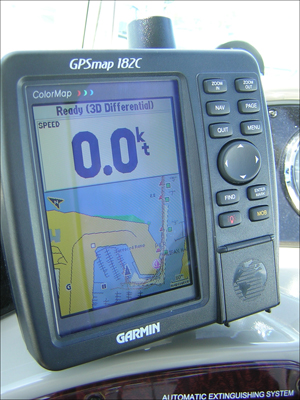

GARMIN GPS Map 182c Moving Map Global Navigation System
Engine Room
Bilge Pump, 12V Automatic
Blower, 12V Bilge
Fire Suppression System: Automatic w/Manual Pull
Gel-Coated Engine Room: Pearl
Insulated Engine Room
Lighting, 12V
Fuel System
Fuel Lines, USCG - Type A-1
Fuel Tank: w/Electric Shutoff Valve & Electric Sending Unit

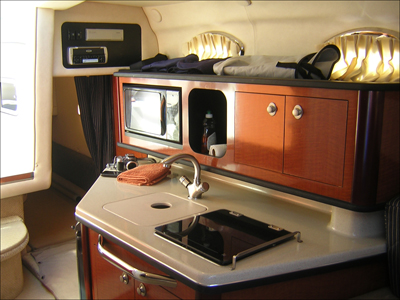

Galley
Countertop, Molded Fiberglass: w/Sink, Faucet & Corian® Sink Cover
Handrail: Stainless Steel
Lighting, 120V/12V: Dual-Voltage
Microwave, 120V
Outlet, 12V Accessory
Refrigerator, 120V/12V: Dual-Voltage
Storage, Upper & Lower
Stove, Butane: Single-Burner
Trash Receptacle: Under Step
Head
Handrail: Stainless Steel
Head (VacuFlush®)
Head, Enclosed: Full Fiberglass w/Shower & Curtain
Mirror
Power Vent, 12V
Hull & Deck Features
Bow & Stern Eyes: Stainless Steel
Bow Rail: Stainless Steel w/Welded Stanchions
Cleats, 8": Custom Sea Ray® Thru-Bolted - Stainless Steel (6)
Color Schemes: (Blue, Green, Black/Tan)
Deck Fill Plates
Drain Plug: Brass-Threaded - Garboard
Gel Coat: Arctic White
Graphics, Striping
Handrail: Stainless Steel - Transom
Hatch, Deck Vent: Translucent w/Locks & Sky Screen Cover (20x20)
Light, Stern: Removable
Lights, Navigation: Stainless Steel
Portlights, (4 Opening): Stainless Steel
Resin: High-Performance Vinylester
Rub Rail, PVC: w/Stainless Steel Insert
Shrink Wrap
Ski Tow Eye: Stainless Steel
Storage, Anchor: w/Hatch
Storage, Transom Wall: (For Fenders & Gear)
Stringer System, Fiberglass

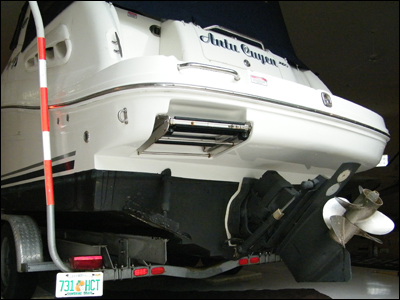

Swim Platform, Integral/Extended: w/Stainless Steel Four-Step Swim Ladder
Thru-Hull Fittings: Stainless Steel
Vent System, Engine Room: Integral
Windshield: Tempered/Tinted Curved Glass w/Walk-Thru & Stainless Steel Supports
Windshield Wiper: Starboard
Mid-Stateroom
Bunk, Double
Curtain, Privacy
Window, Sliding: w/Screen
Propulsion Accessories
Oil Filter - Remote

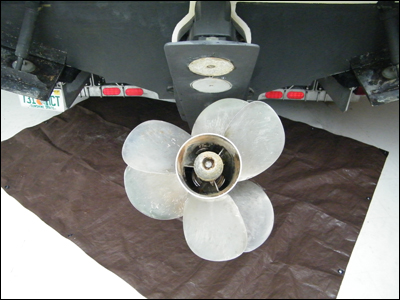

Propeller, Stainless Steel
Underwater Gear
Propeller
Trim Tabs, Hydraulic
V-Berth
Filler Cushions: w/Dedicated Storage
Hanging Locker
Mirrored Rope Locker Bulkhead

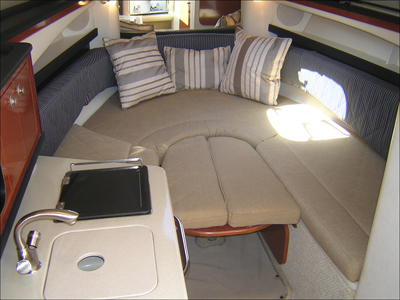

Seating, V-Berth: w/Storage Below - Converts to Bed
Storage, Gunwale Cabinets

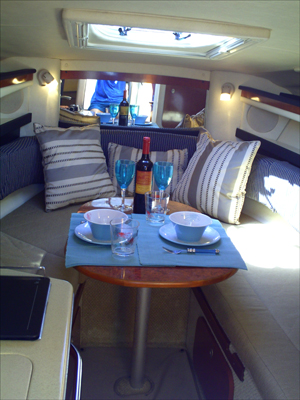

Table, Dinette: w/Burl Wood Formica® Surface & Designated Storage
Waste Systems
Head System (VacuFlush®)
Holding Tank (28-Gallon): w/Dockside Pump-Out
Holding Tank Level Indicator: Head
Sump Box: w/Pump - Automatic
Water System
Freshwater Washdown Spigot: w/Dockside Water Inlet
Pressure Water System: w/12V Pump
Water Heater (6-Gallon): 120V w/Exchanger
Water Tank (28-Gallon)
Installed Optional Equipment
Generator 5.0 kW Kohler® Gas: 120V/60 Cycle with Remote Start, Muffler,
Stainless Steel Exhaust Outlet, Freshwater Cooling, Fuel Filter, Seacock & Seawater Strainer.
Individual Options
Air Conditioning/Heating: 120V/60 Cycle (7,000 BTU)
Anchor Chute: w/Hawse Pipe
Bottom Paint
CD Changer: 6 Disc
CE Option
Canvas, Cockpit Cover
Carpet Liner, Snap-In
Gel-Coated Dash: Nickel
Gray Water System
Head System: w/Direct Overboard Discharge (VacuFlush®) - Int`l
Macerator: w/Seacock Interlock System
Shower, Transom: Hot & Cold
Sirius® Satellite Receiver: w/Antenna
Sport Spoiler: Molded Fiberglass (Seamless) w/Overhead Lighting
Spotlight, 5" Remote-Controlled
Stereo Remote Control: Additional Unit on Transom
Stereo, Premium Cockpit Sound System: w/Upgraded Component Speakers, Amplifiers, Subwoofer & Transom Stereo Remote
Storage Cradle
Stove, Alcohol/Electric: 120V/60 Cycle (Single-Burner)
Table, Cockpit: w/Designated Storage
Windlass, Rope/Chain: w/Foot Switches (Lofrans® Marlin)
Optional Packages (included)
Side & Rear Curtains (Bimini)
|
|
